Universal Flexible Adaptors, Couplings and Dismantle Joints

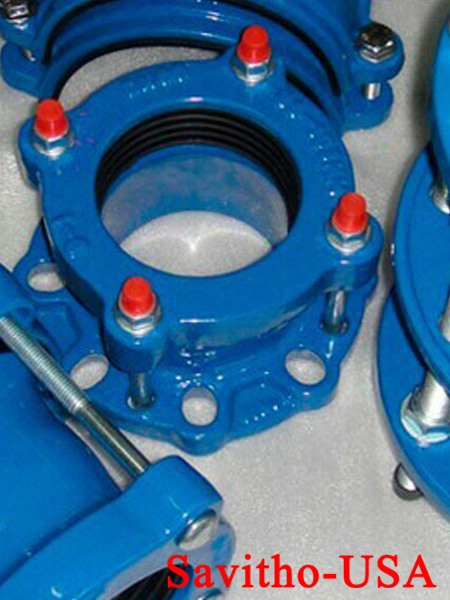

• Universal Coupling Flange Adaptor; Dimension Range from DN50-DN400, Ductile Iron GGG50 Materials with FBE coated PN10,PN16 Working pressure, equipped with galvanized steel bolts, nuts, EPDM or NBR rubber seals, High Tolerance Mechanical Pipe Fittings, Angular deflection +/-3deg.
• Coupling Adaptor for DI Pipes; Ductile Iron GGG50, GJS500-7,GGG40 – Size DN40-DN2000, Pressure: PN10,PN16,PN25,PN40,230psi – Pressure Test; 15bar, 24Bar, 37Bar, 350psi – EPDM, NBR Rubber Seals to EN681 & ASTM D2000. Painting:RAL5017 FBE coated, Min., Coating Thickness 200pm, Flanged End: EN 1092 PN10/PN16,ANSI 150, Table D/E, Connected Pipe: DI Pipe.
• The Dismantling joints enables easy installation and dismantling of isolating valves, non return valves, flow metering equipment, pumps, etc., etc., - It compensates for axial displacement of the pipe during installation / dismantling. – Pressure: PN10, PN16, PN25, PN40 – Dimension Range from DN50 TO DN1800 – Ductile Iron GGG50 Materials with FBE Coated. – Flange Drilling; EN1092 PN10, PN16, AS/BS TD, TE - Equipped with galvanized steel bolts, nuts – Max. Temperature 80 deg. C from EPDM or NBR rubber seals, High temperature is available on request - Un-Retrained Dismantling Joint without Tie-Bar.
